A Water Curtain Spray Booth with an Integrated Water Circuit
The Bomaksan water curtain spray booth is a wet paint mist capture solution that combines the water curtain, recirculation tank and pump group in a single body. Paint particles are captured through contact with the recirculated water curtain.
The water curtain is an effective and reliable capture method, particularly for heavy paint applications. The curtain distribution and the internal capture / separation section are designed for the paint load of your application; booth dimensions are engineered around the workpiece and plant layout.
For lighter paint loads where easy colour change is the priority, the dry filter spray booth is an alternative worth considering.
How the System Works
- Contact with water: Paint mist is captured through contact with the water curtain distributed across the surface. The curtain distribution is designed for the paint load of the application.
- Water circulation: Collected water is pumped back to the distribution line. Water quality, chemical conditioning and paint sludge removal are included in the operating plan.
- Droplet separation: The droplet separator removes water droplets entrained in the air stream. Access, cleaning and pressure drop are part of the maintenance plan.
- Fresh air balance: Extracted air is replaced with a controlled, filtered fresh air supply; fresh air and exhaust infrastructure are planned according to plant conditions.
System Components
- Water curtain: the first contact zone with the paint mist, where circulation water is distributed across the surface
- Water distribution line: the upper distribution arrangement feeding pump water to the curtain surface
- Recirculation tank: the reservoir of the water circuit; paint sludge management is planned with the operating routine
- Pump group: the circuit carrying water collected in the tank back to the distribution line
- Droplet separator: the section separating water droplets from the air stream
- Extraction fan: top-mounted fan extracting air passing through the washing and separation section
Key Features
- Water curtain, tank and pump group integrated in a single body
- Effective and reliable capture for heavy paint applications
- Integrated recirculation tank and distribution circuit
- Droplet separation and maintenance access
- Project-specific booth design based on the workpiece
- Air balance planned together with filtered fresh air supply
Typical Applications
- Metal parts and machinery: wet paint applications for machine parts, sheet metal products and metal equipment
- Wood and furniture: furniture components, wooden surfaces and varnish / lacquer applications
- High paint consumption lines: continuous application processes with heavy paint loads
- Special applications: different part geometries, integration into existing lines and special process needs
Frequently Asked Questions
Which applications suit a water curtain booth?
It is preferred especially in applications with a heavy paint load; the paint mist is captured effectively by the recirculated water curtain. A comparison with the dry filter solution is made based on your application conditions.
How is the water circuit maintained?
Water quality, chemical conditioning and paint sludge removal are included in the operating plan; maintenance access to the tank and pump group is provided for in the design.
Does the booth also capture solvent vapours (VOC)?
The water curtain captures paint particles; particle capture and VOC control are separate matters. For solvent vapours, a separate treatment (such as an activated carbon module) is evaluated based on the paint content and emission load.

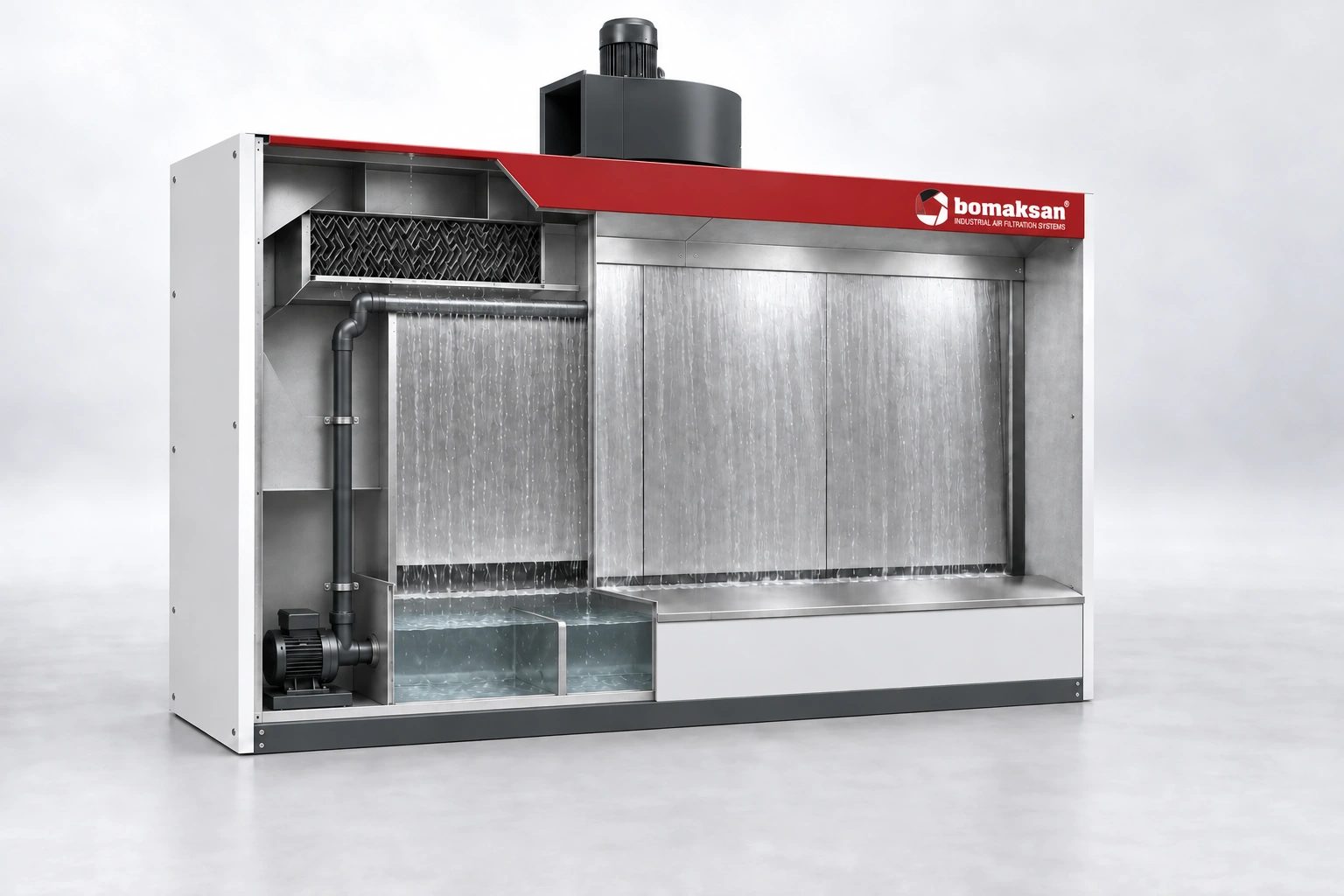

Images show concept product renders; dimensions, equipment selection and final scope are defined per project.
