TOFIL PRO – Mobile Welding Fume Extractor with Superior Performance

The Bomaksan TOFIL PRO series is a high-capacity mobile welding fume extractor, designed for medium to heavy fume and dust loads. With its specially engineered hood and powerful suction, TOFIL PRO captures harmful welding fumes and dust directly at the source. Contaminated air passes through high-efficiency cleanable cartridge filters and is safely released back into the workspace as clean air.

This process not only enhances occupational safety by reducing exposure to hazardous particles but also increases workplace efficiency and employee comfort.

Why Choose TOFIL PRO Welding Fume Extractor ?

The TOFIL PRO series is built for demanding industrial environments, combining high extraction power with operator convenience. Its advanced features provide both long-term durability and ease of maintenance:

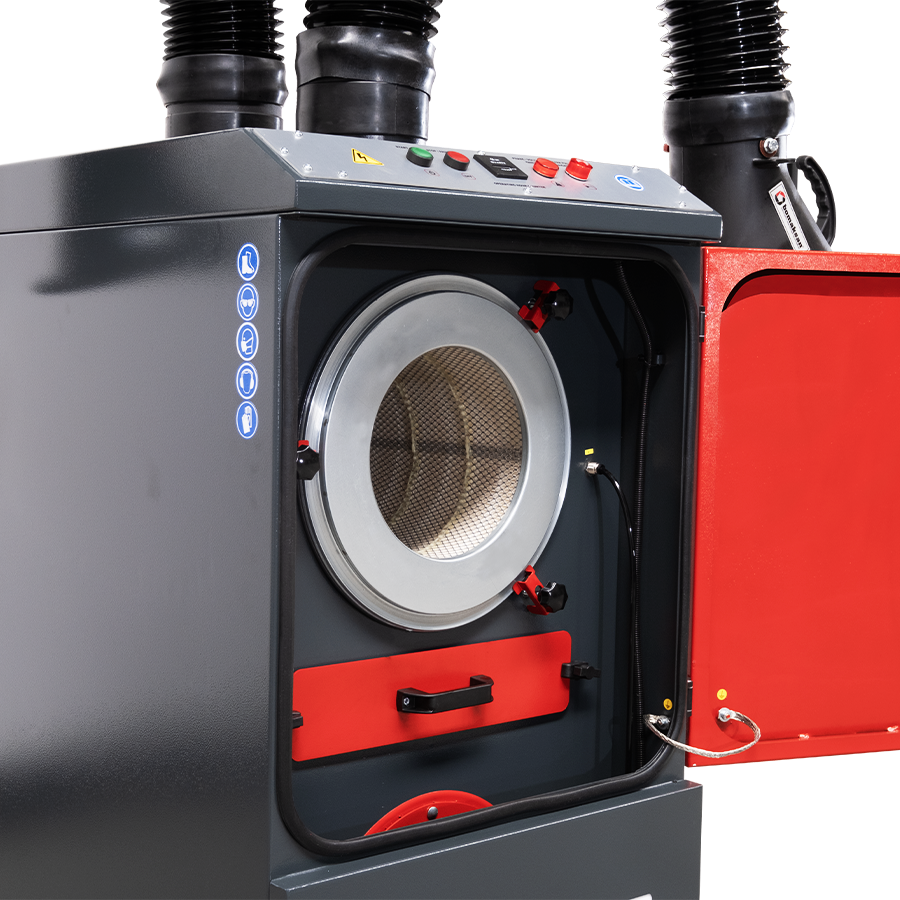

Cleanable Cartridge Filters → Longer filter life with reduced maintenance costs
360° Rotating Extraction Arm → Flexible positioning for effective source capture
High-Efficiency Radial Fan → Powerful suction with low energy consumption
LED Lighting → Enhanced visibility during operation

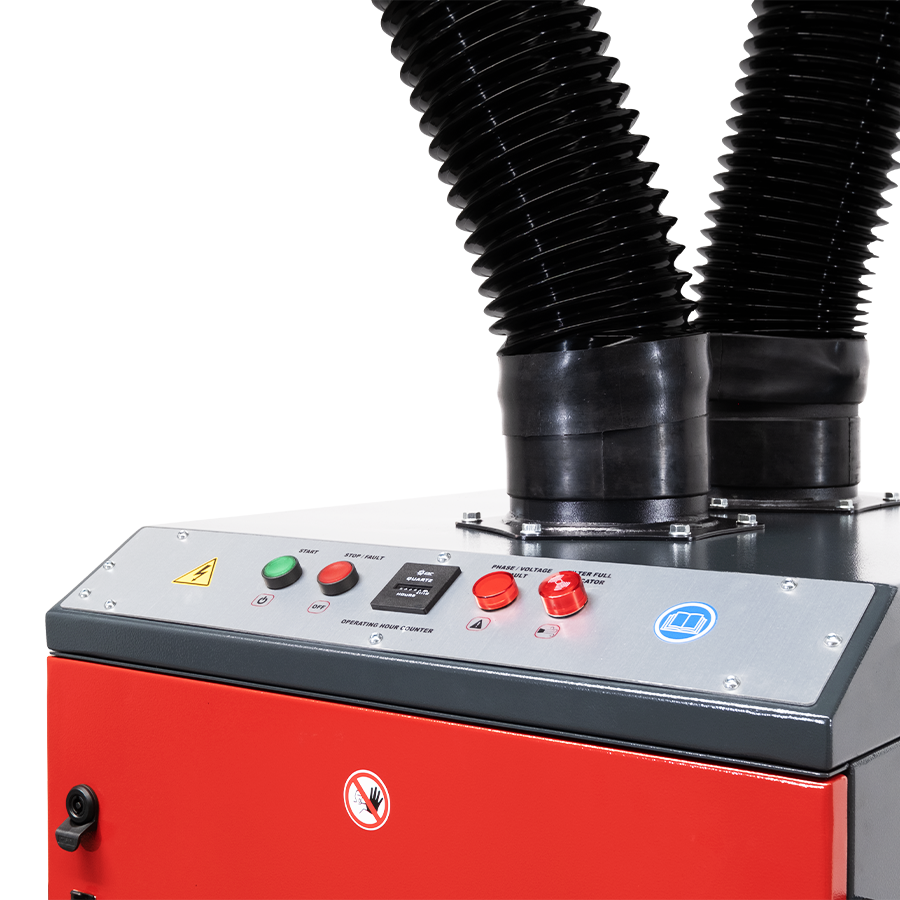

Filter Clog Sensor & Alarm → Alerts operators when efficiency is reduced
Fan Rotation Warning → Prevents incorrect fan rotation caused by phase sequence errors
Operating Hour Counter → Simplifies maintenance planning

Flexible & Scalable Design

TOFIL PRO provides unmatched flexibility thanks to its modular extraction arm system:

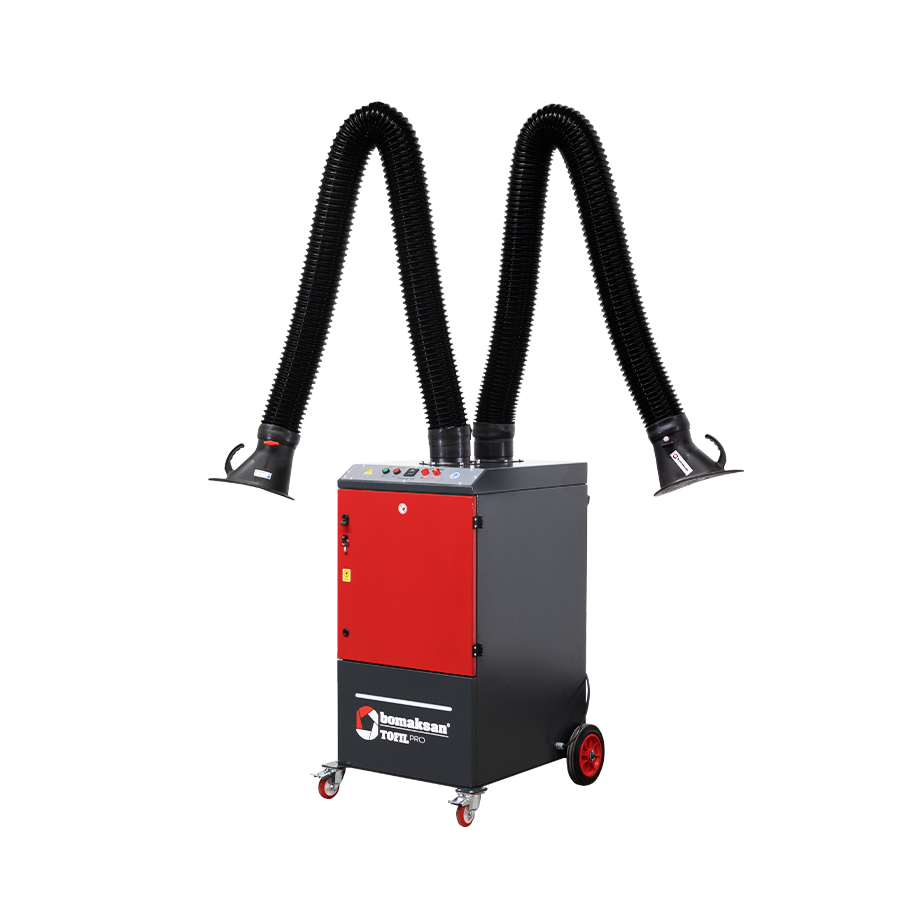

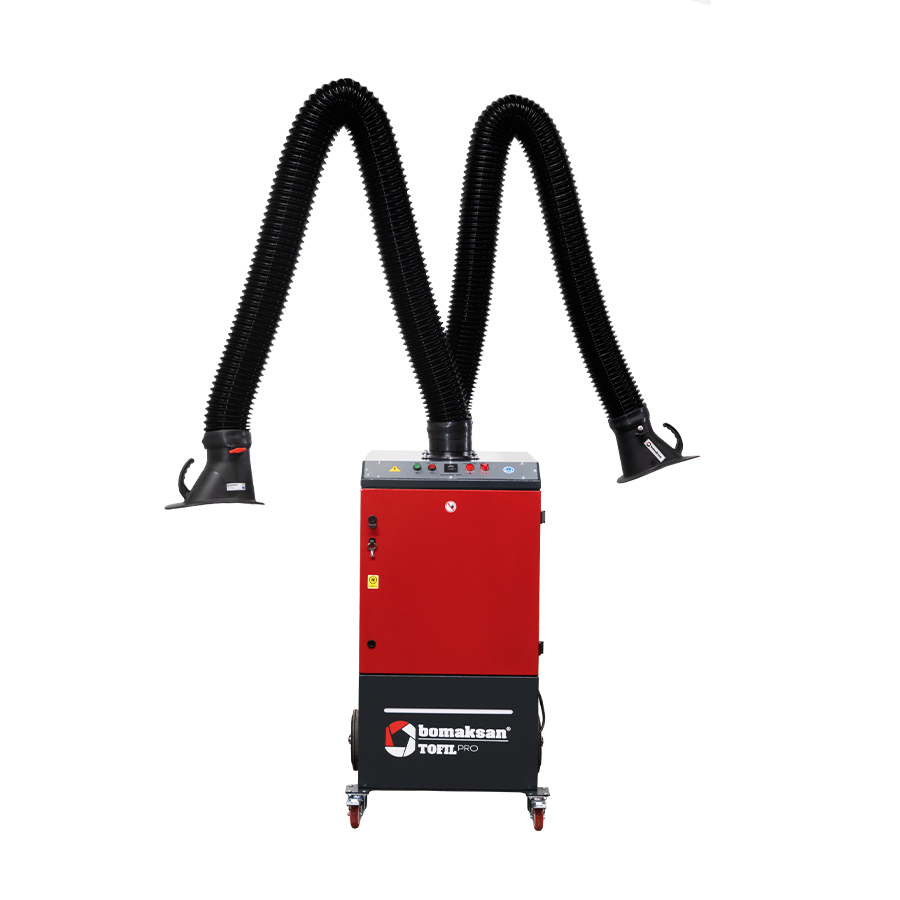

Available with one or two extraction arms
Two-arm configuration allows simultaneous use by two operators with a single unit

A single-arm unit can be upgraded to dual-arm at any time, ensuring scalability for growing production needs

Applications

The TOFIL PRO series is the perfect welding fume extractor for:

Medium to heavy-duty welding operations
Metalworking applications with higher fume and dust intensity
Facilities that require flexible and mobile filtration solutions

For extreme dust loads or specific processes, Bomaksan also offers advanced custom solutions tailored to your facility.

Key Advantages of TOFIL PRO

High filtration area → longer service intervals, less downtime
Cost-effective solution with reduced maintenance needs
Dual-arm configuration for multi-operator use
Robust steel structure, designed for tough industrial conditions
Portable, reliable, and easy to operate

Comparison Table for Mobile Filters LEV - Brochure Welding Fume - Brochure

GENERAL INFORMATION

Filter Type		Cartridge
Filter Media
Standard		nanoBLEND FR
Optional		polyMIGHT PTFE 65
No of Cartridge Filters		1
Total Filtation Area
Standard		24 m²
Optional		20 m²
Filtration Efficiency
Standard		F9 Class
Optional		H13/H14 Class

TECHNICAL INFORMATION

Extraction Capacity
1 Arm Model		1.400 m³/h
2 Arms Model		2 x 1.100 m³/h
Dimensions (W x L x H)		650 x 815 x 1.320 mm
Motor Power		1,1 kW – 3.000 rpm
Power Supply
Standard		380 V / 50 Hz
Optional		230 V – 50 Hz
Noise Level		73 dB(a)

SFS : Standard Filter Set
OFS: Optional Filter Set

ORDER NO

No Arm, SFS	TPRO.0.24.B135FR.50.380
1 Arm, 3 m, Inner Support, SFS	TPRO.13I.24.B135FR.50.380
1 Arm, 3 m, External Support, SFS	TPRO.13O.24.B135FR.50.380
1 Arm, 4 m, External Support, SFS	TPRO.14O.24.B135FR.50.380
No Arm, OFS	TPRO.0.20.265PTFE.50.380
1 Arm, 3 m, Inner Support, OFS	TPRO.13I.20.265PTFE.50.380
1 Arm, 3 m, External Support, OFS	TPRO.13O.20.265PTFE.50.380
1 Arm, 4 m, External Support, OFS	TPRO.14O.20.265PTFE.50.380
2 Arms, 3 m, Inner Support, SFS	TPRO.23I.24.B135FR.50.380
2 Arms, 3 m, External Support, SFS	TPRO.23O.24.B135FR.50.380
2 Arms, 4 m, External Support, SFS	TPRO.24O.24.B135FR.50.380
2 Arms, 3 m, Inner Support, OFS	TPRO.23I.20.265PTFE.50.380
2 Arms, 3 m, External Support, OFS	TPRO.23O.20.265PTFE.50.380
2 Arms, 4 m, External Support, OFS	TPRO.24O.20.265PTFE.50.380
