BTM Series – Grinding Table for Heavy Dust Applications

The Bomaksan BTM Series Grinding Tables are engineered for medium to heavy dust load applications, providing safe and efficient source capture when connected to a central filtration system.
Designed to extract dust and fumes directly at the source, the BTM Series prevents operators from inhaling harmful airborne contaminants, contributing to a cleaner and safer working environment.

With its unique design, the BTM table delivers high-performance suction both from the table surface and the rear extraction panel, ensuring maximum dust control during grinding, sanding, polishing, and similar processes.

Expandable Working Area for Large Parts

The BTM Series features openable side panels, allowing operators to work comfortably with larger workpieces.
This flexibility supports a wider range of industrial applications while reducing the risks of:

Occupational diseases
Workplace accidents
Dust exposure during heavy-duty operations

Built for Harsh Industrial Conditions

Constructed with a robust steel body, the BTM Series is designed for long service life even under demanding industrial environments.

Additional advantages include:

Specially designed grills for fast and easy cleaning
Stable and durable structure suitable for continuous heavy-duty use

Centrally extracted multi-station line of BTM grinding benches with vertical duct connections and shared ductwork

Multi-Station Layout: Centrally Extracted Bench Line

Multiple BTM grinding benches can be installed as a production line, connected to a single central filter unit through vertical extraction connections and a shared duct system. This layout keeps extraction performance consistent at every station in multi-operator grinding and sanding lines, while a single filter unit simplifies maintenance and operation.

Multiple bench stations: modular line setup that scales with your production volume
Per-station extraction connection: balanced airflow with a dedicated vertical duct at each bench
Rear and side panel configuration: working area configurable to workpiece size

BTM bench line with rear-mounted filter modules and part-specific fixtures at side-by-side workstations

Process-Specific Layout: Bench Line with Filter Modules

BTM workstations can be arranged to match your process flow, with filter modules positioned directly behind each bench and part-specific fixtures at the working area. Since extraction and filtration are integrated right behind the station, no separate ductwork run is required — the line is configured around how each workpiece is held and positioned.

Rear-mounted filter modules: integrated extraction and filtration per station, minimising ductwork
Part holding and positioning setup: part-specific fixtures for ergonomic, repeatable work
Side-by-side workstations: space-efficient layout that can grow into a full line

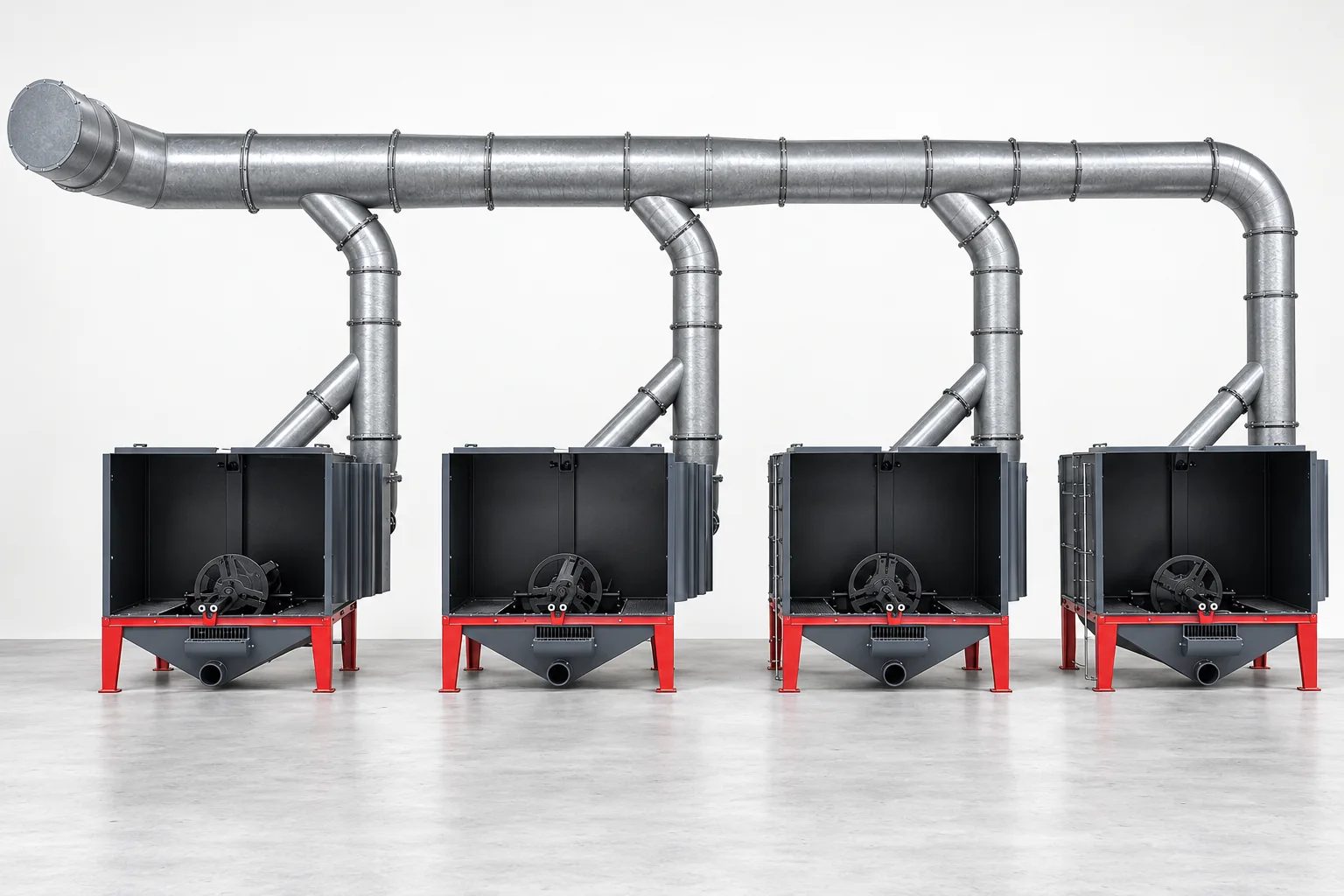

BTM open booth line - four side-by-side open working booths connected to a shared overhead extraction duct

Four-Station Layout: Open Booths on a Shared Extraction Line

BTM workstations can also be arranged as side-by-side open working booths. Four open booths connect to a shared extraction line running overhead, while each station defines its own working area. The shared duct keeps the routing simple and connects the whole line to central filtration through a single run.

Four separate working points: a defined, independent working area for each operator
Shared overhead duct arrangement: one extraction line for a clean duct route and a single connection to central filtration
Front part access: open front face for easy part loading, unloading and operator movement
