Extraction Arms

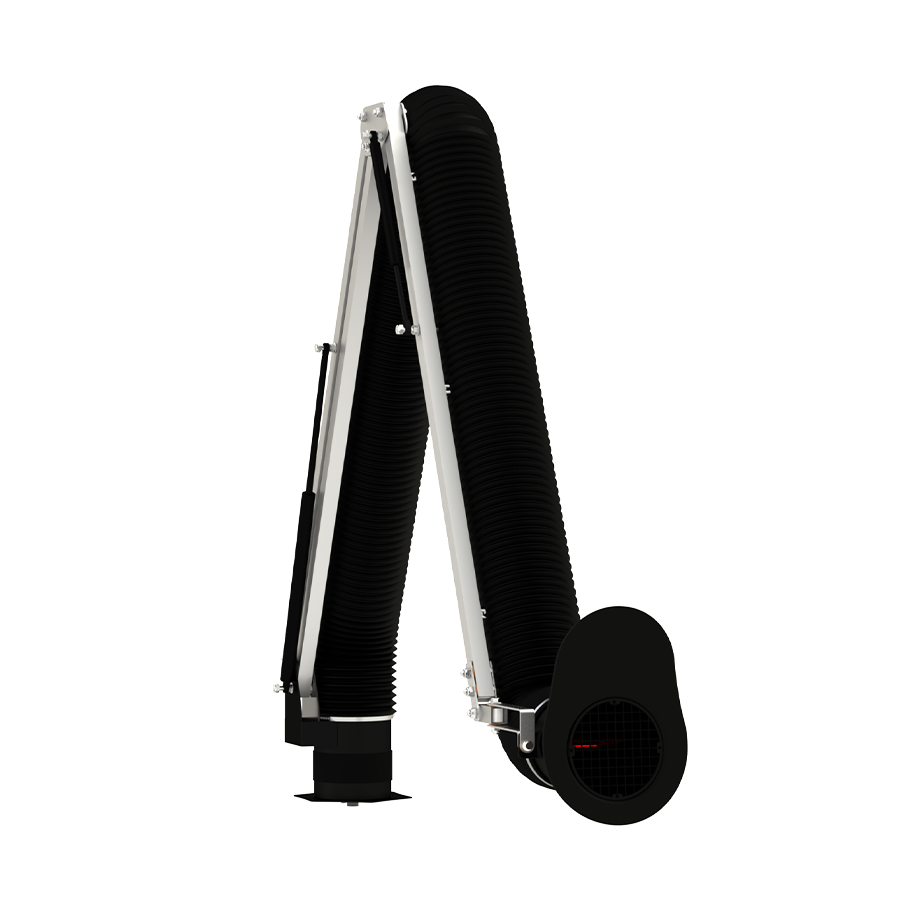

AKROBAT PLUS – Flexible Extraction Arm for Local Fume Capture
The Bomaksan AKROBAT PLUS Series Extraction Arm is designed for effective fume and dust capture at individual workstations.
It can be used as a single-station extraction solution when paired with a dedicated fan or as part of a multi-user system when integrated with ducting connected to a central extraction and filtration unit.
Its flexible design allows operators to position the hood precisely where fumes and particles are generated, ensuring efficient source capture and improved indoor air quality.
Suitable for Various Industrial Applications
The AKROBAT PLUS Series is ideal for:
- Welding fume extraction
- Grinding and sanding operations
- Dust and light particulate capture
- Laboratory and workshop environments
Engineered for durability and smooth maneuverability, it is well suited for continuous daily use in industrial settings.
When AKROBAT PLUS May Not Be the Right Choice
In certain situations, flexible extraction arms may not provide the required performance—particularly when:
- Dust loads are extremely high
- Fully enclosed or specialized capture is needed
- The process involves oily fumes or oil mist
GENERAL INFORMATION
| Type | Wall Type |
| Support Type | Inner Support |
| Max. Operating Temperature | 80°C |
| Application | Fume and Gas |
| Hood Material | Plastic |
| Hose Material | PVC |
TECHNICAL INFORMATION
| Hose Length | 2m – 3m – 4 m |
| Hose Diameter | Ø160 mm |
| Rec. Air Flow | 1.200 – 2.100 m³/h |
